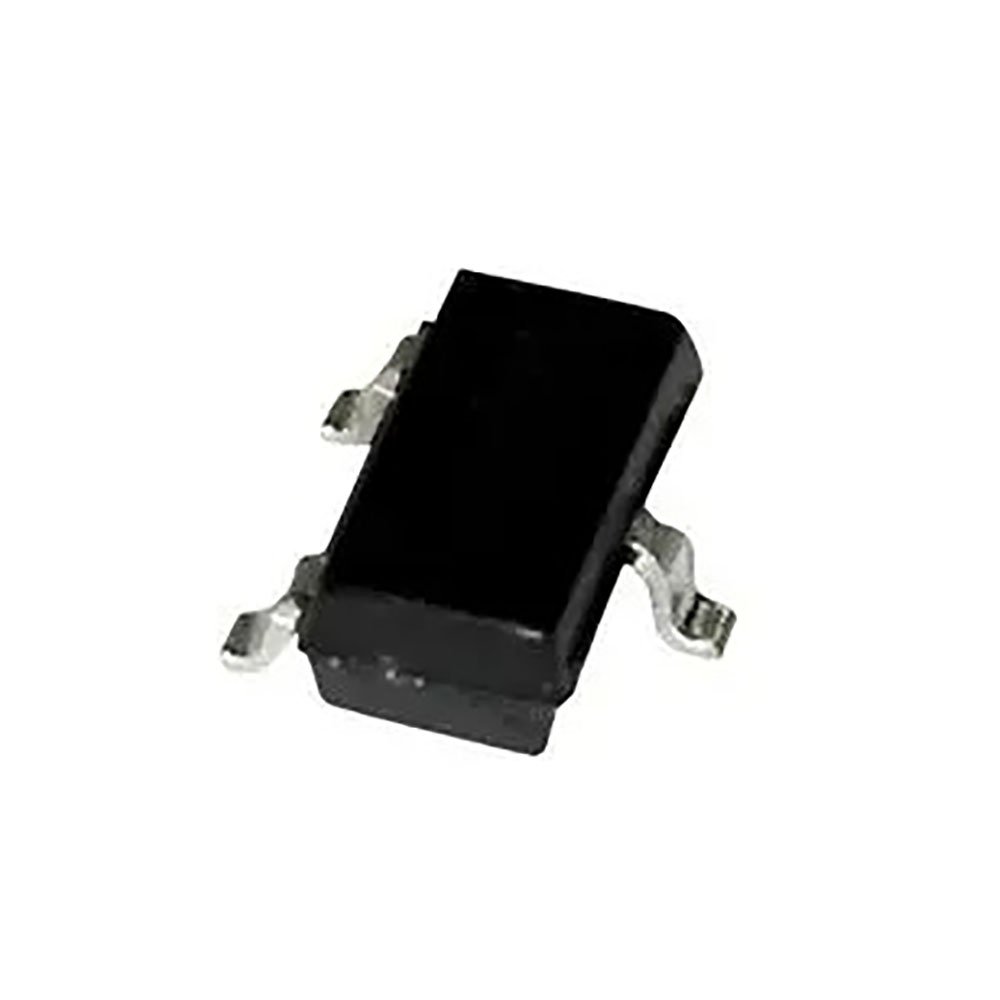

DTC143ZE
NPN digital transistor with 50V supply, 100mA output current, 4.7kΩ input resistor and SOT-523 package.
Transistor PolarityNPN
Supply Voltage (VCC)50 V
Output Current (IO)100 mA
Input Resistor (R1)4.7 kΩ Typ
Resistance Ratio (R2/R1)10 Typ
PackageSOT-523
Product Overview
The DTC143ZE is an NPN digital transistor with an integrated bias resistor network, designed to simplify inverter, switching, and interface circuits without requiring external input resistors. It supports a 50V supply voltage, 100mA output current, and a typical input resistance of 4.7kΩ with an R2/R1 resistance ratio of 10. Its built-in bias network helps reduce component count, simplify circuit design, and save PCB space.
Packaged in a compact SOT-523 surface-mount package, the DTC143ZE is suitable for logic-controlled switching, digital interfaces, microcontroller output stages, and other low-current control applications.
Specifications
Key electrical, package, and sourcing parameters for quick engineering review.
| Part Number | DTC143ZE |
| Brand | CNCHIPDEPOT |
| Package | SOT-523 |
| Product Type | Digital Transistor |
| Transistor Configuration | NPN Pre-Biased |
| Transistor Polarity | NPN |
| Supply Voltage (VCC) | 50 V |
| Input Voltage | -5 V to +30 V |
| Output Current (IO) | 100 mA |
| Input Resistor (R1) | 3.29–6.11 kΩ, 4.7 kΩ Typ |
| Resistance Ratio (R2/R1) | 8–12, 10 Typ |
| DC Current Gain (GI) | 80 Min @ VO = 5 V, IO = 10 mA |
| Input On Voltage (VI(on)) | 1.3 V Max @ VO = 0.3 V, IO = 5 mA |
| Input Off Voltage (VI(off)) | 0.5 V Min @ VCC = 5 V, IO = 100 µA |
| Output On Voltage (VO(on)) | 0.3 V Max, 0.1 V Typ @ IO = 5 mA, II = 0.25 mA |
| Transition Frequency (fT) | 250 MHz Typ |
| Power Dissipation (PD) | 150 mW |
