LM324

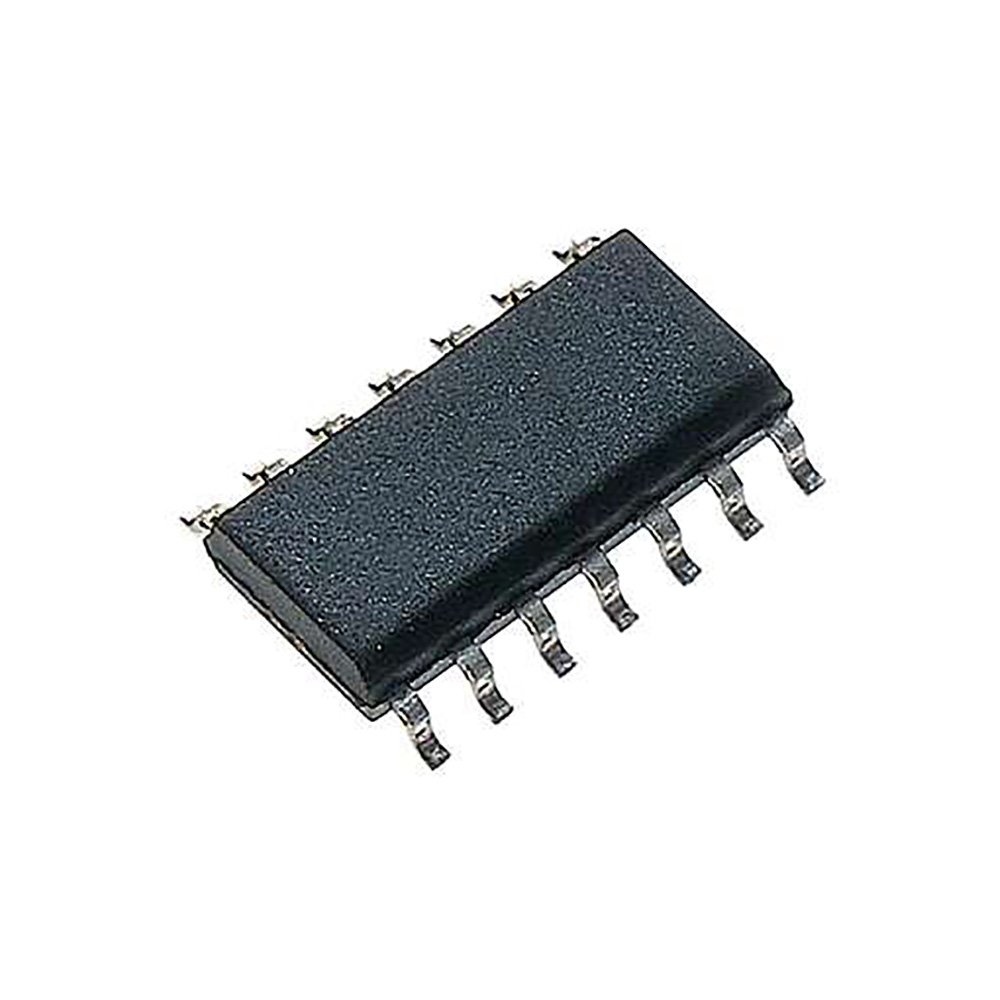

LM324 Power ICs in SOP-14 package. Contact our team for PDF datasheet.
Product Overview
LM324 Power ICs in SOP-14 package. Contact our team for PDF datasheet.
Specifications
Key electrical, package, and sourcing parameters for quick engineering review.
| Part Number | LM324 |
| Brand | CNCHIPDEPOT |
| Package | SOP-14 |
| Type | Quad Operational Amplifier |
| Number of Channels | 4 |
| Supply Voltage Range | 3V to 32V or ±1.5V to ±16V |
| Input Offset Voltage | ±2mV max |
| Input Bias Current | 20nA max |
| Input Offset Current | 5nA max |
| Open-Loop Voltage Gain | 100dB min |
| Output Voltage Swing | ±13V (±15V supply, RL=2kΩ) |
| Common-Mode Input Voltage Range | 0V to VCC-1.5V (Single supply) |
| Slew Rate | 0.5V/μs |
| Product Type | Operational Amplifier |
Cross Reference & Replacement Information
The following part numbers are commonly reviewed for replacement or compatibility matching. Always verify datasheet, package, pinout, and operating conditions before bulk purchase.
| Target Brand | Target MPN | Replace Type | Notes |
|---|---|---|---|
| Texas Instruments | LM324 | Direct Replacement | Same part number, fully compatible. |
| STMicroelectronics | LM324 | Cross Reference | Check package and electrical parameters for consistency. |
| ON Semiconductor | LM324 | Compatible Alternative | Verify datasheet specifications before use. |
| National Semiconductor | LM324 | Original Manufacturer | Now part of Texas Instruments, same device. |
Datasheet
Download the datasheet or contact us for additional technical information.
Contact us for technical details and replacement review support.
Typical Applications
Suitable for electronic product design, sourcing, replacement review, and BOM matching projects.
Ordering & RFQ Information
- MOQ: Contact sales
- Lead Time: 3–7 working days for stock items
- Packaging: Reel / Tube / Tray depending on package
- Sample Availability: Available on request
- Mass Production Status: Contact sales
FAQ
Can this part replace my current model?
It may be suitable depending on your circuit requirements. Please verify datasheet, package, pinout, and test samples before bulk orders.
Can I request samples?
Yes. Please submit your RFQ with target quantity and application details.
Need this part or a compatible replacement?
Send us your target part number, BOM list, quantity, and technical requirements. CNCHIPDEPOT can help review replacement options and provide RFQ support.
Submit RFQ
