1SS226

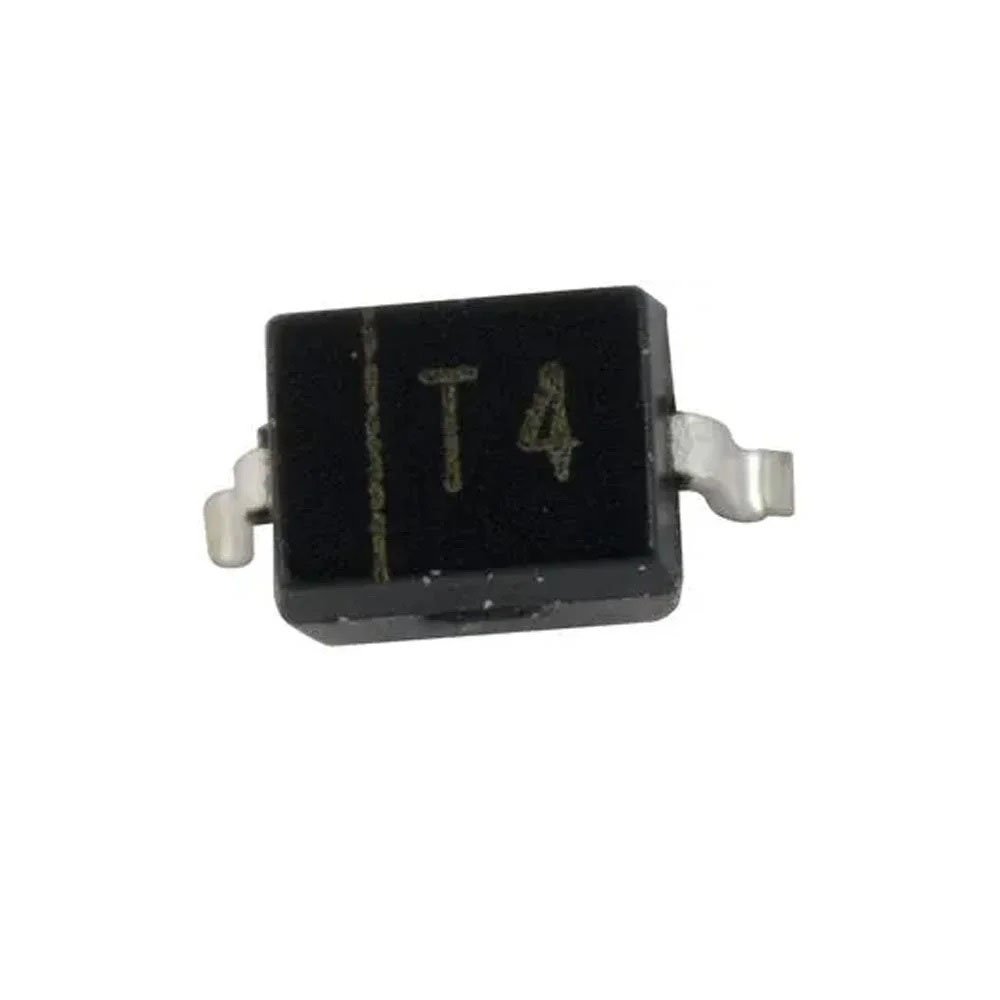

1SS226 is a switching diode in SOD-323 package, suitable for various switching applications with compact design and efficient performance.
Product Overview
1SS226 is a switching diode in SOD-323 package, suitable for various switching applications with compact design and efficient performance.
Specifications
Key electrical, package, and sourcing parameters for quick engineering review.
| Part Number | 1SS226 |
| Brand | CNCHIPDEPOT |
| Package | SOD-323 |
| Component Type | Switching Diode |
| Package Outline | SOD-323 |
| Repetitive Peak Reverse Voltage (VRRM) | 80 V |
| Continuous Forward Current (IF) | 100 mA |
| Max Forward Voltage (VF) | 1.2 V @ IF = 100 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Reverse Leakage Current (IR) | 0.1 μA @ VR = 80 V |
| Total Power Dissipation (PD) | 200 mW @ 25 °C Ambient |
| Operating Junction Temperature Range | -55 °C to +150 °C |
| Product Type | switching diode |
Cross Reference & Replacement Information
The following part numbers are commonly reviewed for replacement or compatibility matching. Always verify datasheet, package, pinout, and operating conditions before bulk purchase.
| Target Brand | Target MPN | Replace Type | Notes |
|---|---|---|---|
| ON Semiconductor | 1N4148W | Possible Replacement | SOD-323 package, general purpose switching diode, verify Vf and Trr parameters. |
| NXP Semiconductors | BAS16 | Cross Reference | SOD-323 package, switching diode with similar electrical characteristics. |
| Diodes Incorporated | DS148 | Compatible Alternative | SOD-323 switching diode, check datasheet for exact specifications. |
| Rohm Semiconductor | RB751V-40 | Functional Substitute | SOD-323 package, low Vf switching diode, confirm application requirements. |
Datasheet
Download the datasheet or contact us for additional technical information.
Contact us for technical details and replacement review support.
Typical Applications
Suitable for electronic product design, sourcing, replacement review, and BOM matching projects.
Ordering & RFQ Information
- MOQ: Contact sales
- Lead Time: 3–7 working days for stock items
- Packaging: Reel / Tube / Tray depending on package
- Sample Availability: Available on request
- Mass Production Status: 50K+ pcs Stock / Mass Production
FAQ
Can this part replace my current model?
It may be suitable depending on your circuit requirements. Please verify datasheet, package, pinout, and test samples before bulk orders.
Can I request samples?
Yes. Please submit your RFQ with target quantity and application details.
Need this part or a compatible replacement?
Send us your target part number, BOM list, quantity, and technical requirements. CNCHIPDEPOT can help review replacement options and provide RFQ support.
