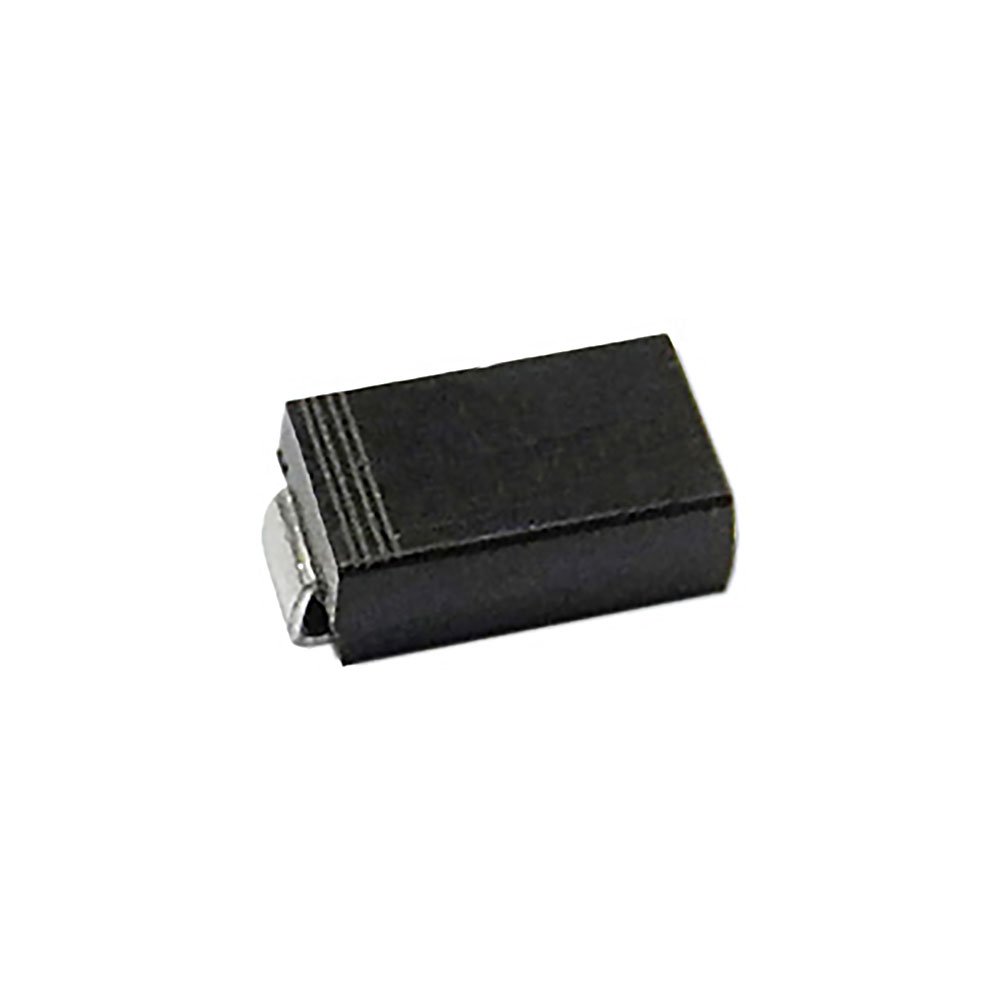

SS110F
SS110F is a Schottky diode in SMAF package, suitable for high-frequency rectification and low-voltage applications with efficient performance.
Product Overview
SS110F is a Schottky diode in SMAF package, suitable for high-frequency rectification and low-voltage applications with efficient performance.
Specifications
Key electrical, package, and sourcing parameters for quick engineering review.
| Part Number | SS110F |
| Brand | CNCHIPDEPOT |
| Package | SMAF |
| part_number | SS110F |
| component_type | Schottky Barrier Diode |
| package_type | SMAF (Flat SMA) |
| average_forward_rectified_current | 1A |
| maximum_repetitive_peak_reverse_voltage | 100V |
| max_forward_voltage (IF=1A) | 0.85V |
| max_reverse_leakage_current (25℃, VR=100V) | 20μA |
| typical_reverse_recovery_time | 10ns |
| max_power_dissipation (25℃ ambient) | 1.5W |
| operating_temperature_range | -65℃ ~ +150℃ |
| Product Type | Schottky diode |
Cross Reference & Replacement Information
The following part numbers are commonly reviewed for replacement or compatibility matching. Always verify datasheet, package, pinout, and operating conditions before bulk purchase.
| Target Brand | Target MPN | Replace Type | Notes |
|---|---|---|---|
| ON Semiconductor | MBR1100T3G | Cross Reference | Verify SMAF package compatibility and forward voltage. |
| Diodes Incorporated | SD110 | Compatible Alternative | Confirm reverse leakage current and thermal resistance. |
| Toshiba | SS110 | Direct Replacement | Ensure package type (SMAF) is identical to original. |
| Vishay | VS-11EQ010PBF | Possible Replacement | Check voltage and current ratings match SS110F. |
Datasheet
Download the datasheet or contact us for additional technical information.
Contact us for technical details and replacement review support.
Typical Applications
Suitable for electronic product design, sourcing, replacement review, and BOM matching projects.
Ordering & RFQ Information
- MOQ: Contact sales
- Lead Time: 3–7 working days for stock items
- Packaging: Reel / Tube / Tray depending on package
- Sample Availability: Available on request
- Mass Production Status: 50K+ pcs Stock / Mass Production
FAQ
Can this part replace my current model?
It may be suitable depending on your circuit requirements. Please verify datasheet, package, pinout, and test samples before bulk orders.
Can I request samples?
Yes. Please submit your RFQ with target quantity and application details.
Need this part or a compatible replacement?
Send us your target part number, BOM list, quantity, and technical requirements. CNCHIPDEPOT can help review replacement options and provide RFQ support.
Submit RFQ
